Aerogel A2
DESCRIPTION
Advanced Porous Material for thermal insulation (APM) .
OVERVIEW
Thermal insulation blanket/sheets made of continuous filament needlepunched glass fibers and nanoporous synthetic amorphous silica (aerogel).
Aerogel A2 comes as a compact and tough mat that offers breathability and durability thanks to its fibrous matrix.
Widely used for thermal insulation in construction and industry, it boasts superior performance compared to traditional insulation materials.
Suitable for restoration and building renovation, and generally for all civil and industrial applications requiring high insulation performance and low thickness of the insulating package.
Suitable for both internal and external thermal insulation systems (ETICS).
Harmful emissions free : VOC A+. RoHS Directive 2011/65/EU compliant.
CORE FEATURES
superior thermal insulation
reduced thickness
non-combustible non-flammable
compression resistant
harmful emissions free
super-hydrophobic
easy to handle
resistente alla compressione
GUIDELINES
Aerogel A2 is easy to work with, can be cut and drilled as needed.
Clean and precise cuts allow optimal joint alignment where the fibers links and recreate the continuity of the material.
Attachment to brick or concrete structures is by gluing or mechanically. On wooden structures, stapling or nailing are th mainly methods.
To promote adhesion of plasters/adhesives the surface of Aerogel A2 can be treated with primers/fixatives such as RAPID GRIP.
Please refer to specific documentation depending on the type of application.
For external thermal insulation systems (ETICS) please consult Installation guidelines.
PERFORMANCE

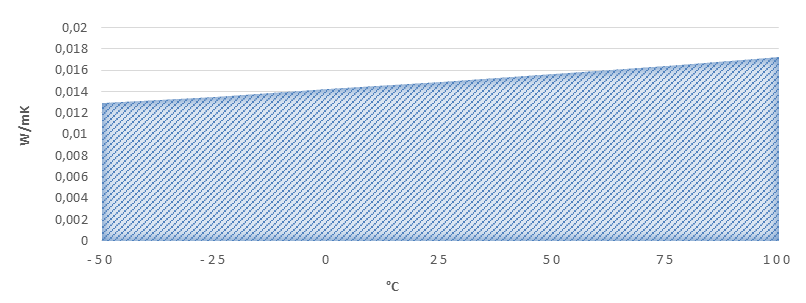

Thermal conductivity as a function of operating temperature
(trend obtained by interpolation with conversion coefficient ft = 0,00150343)
TECHNICAL DATA
| CHARACTERISTIC | STANDARD | U.M. | VALUE | |
|---|---|---|---|---|
| Declared thermal conductivity 1) | λD | EN10456 | W/mK | 0,016 |
| Thermal resistance 2) | R | - | m2K/W | 0,69 |
| Calorific value | Cp | EN10456 | J/Kg.K | 1030 |
| Nominal density | - | Kg./m3 | 200 ± 15% | |
| Water vapour transmission rate | μ | EN12086 | - | 13 |
| Water vapor permeability | EN12086 | Kg./msPa | 14,4x10-12 | |
| Airflow resistivity | r | EN29053 | KPas/m2 | >1000 |
| Short-term partial immersion water absorption | Wp | EN1609 | Kg./m2 | 0 |
| Long-term immersion water absorption | Wlp | EN12087 | Kg./m2 | 0 |
| Compression behaviour | σ10 | EN826 | KPa | 54 |
| Point load behavior | F5 | EN12430 | N | 1193 at 5 mm strain |
| Compressive creep 3) | ε10Y | EN1606 | % | 0,45 (3 KPa) 1,55 (6 KPa) 3,65 (9 KPa) |
| Dynamic stiffness 1) | s' | EN29052-1 | MN/m3 | 43 |
| Compressibility 1) | c | EN12431 | mm | 1,2 |
| Tensile strength perpendicular to faces | EN1607 | KPa | 13 | |
| Tensile strength parallel to faces | EN1608 | KPa | perpendicolar to fibre direction: 202 parallel :1297 | |
| Dimensional stability (70°C / 90%UR) | EN1604 | % | width: Δεl<1 length: Δεb<1 thickness: Δεd<1 | |
| Static contact angle | Θ | EN15802 | ° | 167 |
| Euroclass fire reaction | EN13501-1 | - | B / s1 / d0 | |
| Volatile Organic Compounds (VOC) | EN16000-9 | classe | A+ | |
| RoHS | EN62321 | - | Directive 2011/65/EU compliant | |
| Service temperature range 4) | - | °C | -30/+300 |
1) prestazione determinata con spessore 11 mm 2) d/λD con d= 0,011 m 3) regressione lineare elaborata da 1h a 2928h non si riscontrano fenomeni interni di “self heating”, rotture, cavità, degrado della struttura fibrosa o riduzione dello spessore > 1%.
SIZES
| Nominal thickness (mm) | 7 | 11 | 22 | 33 | 44 | 55 |
|---|---|---|---|---|---|---|
| Size | R | R - P - S | M | M | M | M |
| Dimension | ref. to Products catalog | |||||
| Dimensional tolerance | width, lenght: ±1,5% ; thickness:±10% | |||||
R=blanket P=pannel M==multi-layer panel
COMPLIANCE
Manufacturer declaration of conformity in compliance with D.M. 2-04-98.
MORE INFO
Article does not contain substances classified as hazardous according to Regulation (EC) 1272/2008 and subsequent amendments. Please review the Information Sheet for detailed information.
FAVs classification under Regulation (EC) 1272/2008 – Annex VI, as amended by Regulation (EC) 790/2009 according to CLP criteria. HAZARD CATEGORY: Exempt from classification. NOTE: “R”.
TARIC: 680690 0000
STORAGE
Store in a dry environment, away from moisture and ice.
Avoid exposition to UV rays for long periods.
Under standard storage conditions, article is indefinitely storable.
DISPOSAL
Dispose of article and its packaging according to current local/national regulations. CER: 17.06.04
Article can be disposed of in landfills facilities for non-hazardous waste according to D.M. 27/09/2010.
LEGAL NOTE
This technical data sheet replaces and cancels any previous versions. All data and information are representative of the typical characteristics of the material and correspond to our current and best knowledge. However, no liability can arise from them, and no claims can be made against ECOFINE S.R.L. It is the user’s responsibility to verify the suitability of the product for its specific use, assuming all inherent responsibility arising from its use. Technical dept. is available for information, clarifications, and inquiries about the use and processing of all our articles. The manufacturer reserves the right to make changes to the product without prior notice. Updated technical data sheets are available on the website www.aerogel.it or can be requested from our offices. Detailed information on proper use is available in the Information Sheet.
